BZXL22 Wheel Hub Machining Cell

  • BZXL22
  • BOCHI

Introduction

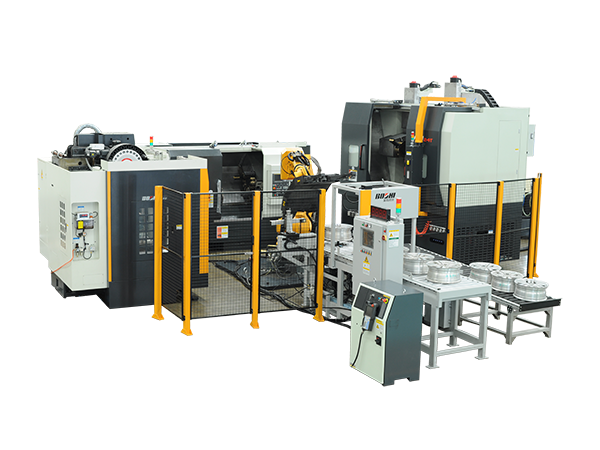

BZXL22 wheel hub machining cell is designed for turning and drilling aluminum automotive wheels. It mainly consists of 2 sets CNC lathes designed specially for wheel, 1 set vertical machining center, 1 set of industrial robot and 1 set of auto loading/unloading and testing system, which are arranged in a ring islands. It can meet the needs of market for machining aluminum wheels ranging for “14” to ”22”.


Specifications

Items

Unit

BZXL22

Machining range of wheel

in

1422

Load of wrist of   industrial robot

kg

165

Effective radius   of wrist of industrial robot

mm

2665

Wheel turning   machine

Max. swing over   bed

mm

φ750

Max. turning   dia.

mm

φ630

Main motor power   (cont./30min)

kW

30/37

Number of tool   stations


12

Vertical   machining center

Table area

mm

1050×500

Permissible load

kg

600

Spindle motor   power (cont./15min)

kW

7.5/11

Number of tool   stations


24

Speed reducer of   transmission belt

kW

0.75

Capacity of   machining unit

kVA

175

Floor area (L×W)

mm

12000X11000


Equipments

CK7660 series CNC Lathe for wheel hub

CK7660L Series CNC Lathe for wheel hub can do External, Internal, Face turning for wheel hub.

                                                                          MORE...

VW24T CNC Vertical Lathe

VW24T CNC Vertical Lathe can do External, Internal turning; with double turret, can do External, Internal turning together.

                                                                           MORE...

VMC1060 Series Machining Center

VMC1060 Series Machining Center can do drilling, milling works.

                                                                            MORE...

VMC850 Series Machining Center

VMC850 Series Machining Center can do drilling, milling works.

                                                                             MORE...
