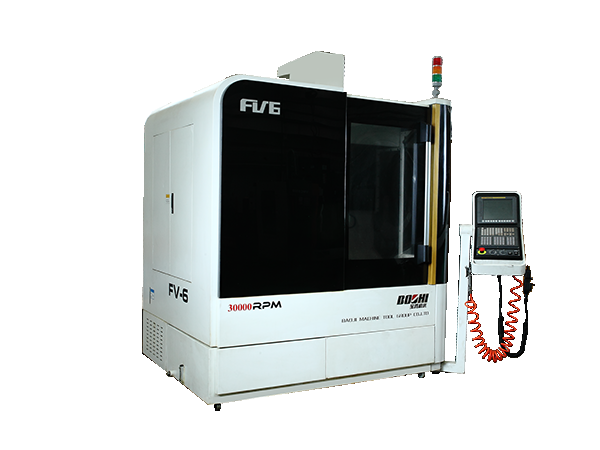

FV-6 High-speed Gantry Vertical Machining Center

  • FV-6
  • BOCHI
  • FV-6
  • FV-6
Quantity:

Introduction:

  FV-6 gantry machine features a rigid motor spindle of 30000r/min, rigid and heavy load linear roller ways of X, Y and Z axes, a tool length detector and coders of three axes. Requirements of die/mold machining and precision machining are satisfied. This machine, with fully-enclosed guard, small floor area, easy work setting and low cost of fixtures/jigs, is an optimum choice for die/mold industry.


Model

Unit

FV-6

Table

Worktable  face

mm

600×550

T-Slots  (Size ×Number)

mm

14×4  (P=100)

Max.  table load

kg

500

Travel

Right  and left travel (X)

mm

600

Back  and forth travel (Y)

mm

500

Headstock  up and down travel (Z)

mm

350

Distance  of spindle nose to table face

mm

120-470

Spindle

Spindle  taper bore


ISO30

spindle  speed

rpm

30000

Feed



Cutting  feed (X/Y/Z)

mm/min

1-12000

Rapid  traverse (X/Y/Z)

m/min

24/24/15

ATC  (Automatic Tool Changer)

Tool  shank type


ISO30

Capacity  of tool magazine

Tools

16

Max.  Tool size (Dia. ×Length)

mm

Φ40×150

Max.  Tool weight

kg

1.5

Tool  selection mode


Fixed

Motor

Spindle  drive motor


30000rpm  8.5kw

Machine  weight, Floor area and packing

Floor  area (W×L)

mm

1920×2210

Machine  height

mm

2530

Power  capacity

KVA

25

Net  weight

kg

4200

Gross  weight

kg

5100

Packing  measurement (wooden case)

mm

2326×2560×2610
