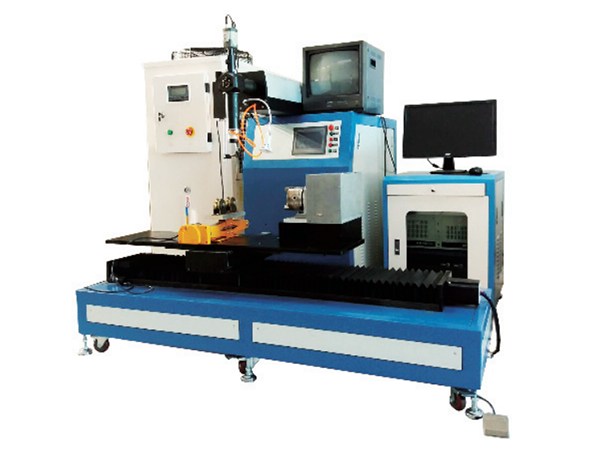

Introduction
Laser cladding is a new surface modifi cation technology. And it is the fi rst selection of equipment accessories repair way.
Advantages
● Low cost and Short maintenance time
● Increased the strength of the mold
● Shorten the manufacturing cycle
● Super wear-resistant alloy laser cladding can increase the service life of workpieces
Application
•Surface modifi cation of materials, such as gas turbine blades, rollers, gears, etc.
•Repair the surface of the product, such as rotor, mold, etc.
Introduction
Laser cladding is a new surface modifi cation technology. And it is the fi rst selection of equipment accessories repair way.
Advantages
● Low cost and Short maintenance time
● Increased the strength of the mold
● Shorten the manufacturing cycle
● Super wear-resistant alloy laser cladding can increase the service life of workpieces
Application
•Surface modifi cation of materials, such as gas turbine blades, rollers, gears, etc.
•Repair the surface of the product, such as rotor, mold, etc.
Specifications
Model | JHJ-R500 | JHJ-R800 |
Laser wavelength | 1064nm | 1064nm |
Max. laser power | 500W | 800W |
Lamp-pumped | 2 piece | 4 piece |
Max. Laser pulse energy | 80J | 100J |
Power instability | 5% | 5% |
Pulse frequency | 1-100Hz | 1-300Hz |
Pulse width | 0.2ms-10ms | 0.2ms-20ms |
Worktable | 1200mm×200mm ( customized ) | 1200mm×200mm ( customized ) |
Machining diameter | ≤100mm | ≤100mm |
Positioning accuracy | ≤±0.025mm | ≤±0.025mm |
Control System | PC+control card | PC+control card |
Cladding depth | ≤1.0mm | ≤1.5mm |
Weld width | ≤2mm | ≤2.5mm |
Positioning system | CCD+red light | CCD+red light |
Cooling method | Water cooling | Water cooling |
Power consumed | 18kw | 32kw |
Power supply | 380V/50Hz/60A | 380V/50Hz/100A |
