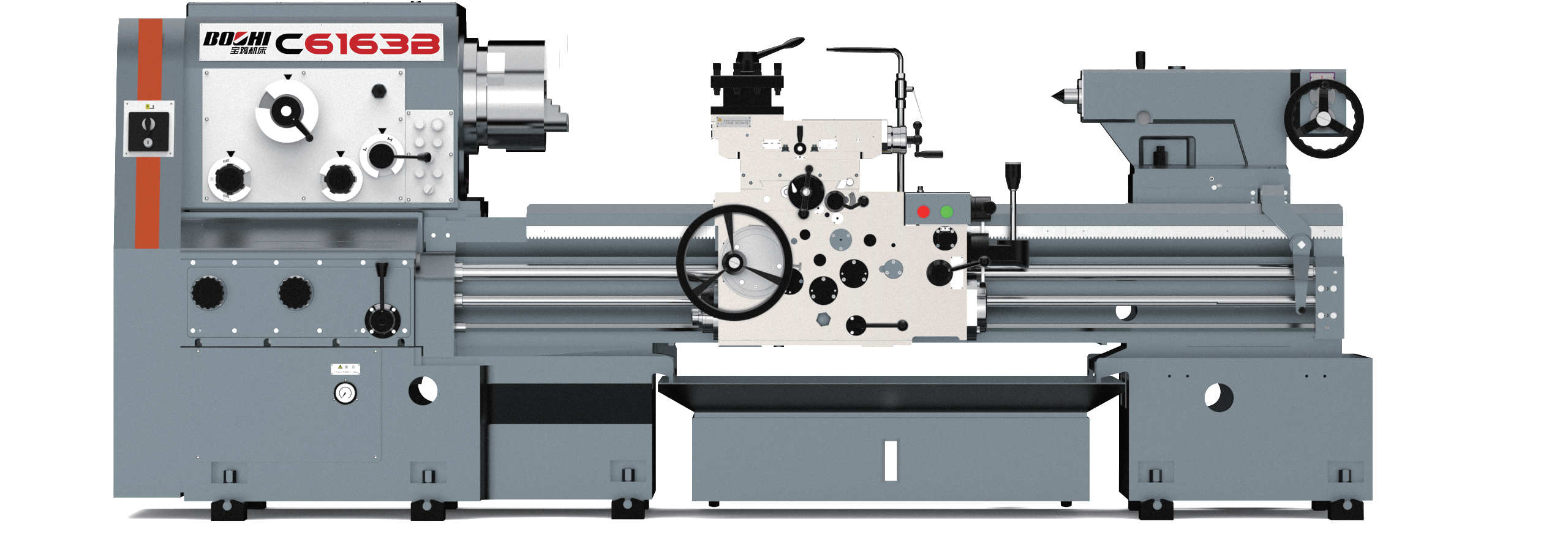

C6163B Universal Lathe

  • C6163B

  • BOCHI

  • C6163B series

  • C6163B

Availability:

Introduction:


This lathe is able to perform internal/external cylindrical turning, taper turning and other sort of turnings, facing, threading such as Metric, Inch, Module and D.P threads; drilling, reaming, tapping and grooving, etc.

Features

  (1) Distortion resistant horizontal bed made of quality cast iron; induction hardened guide way, 560mm wide span.

  (2) Mating part of the guide way stuck with teflon tape is wearable, shock proof and accuracy lasting.

  (3) The spindle is in three support design, high rigid, high accurate and able to perform heavy cut. Diameter of spindle thru-hole is Φ105mm.

  (4) Wide range of 14 step speeds always allows selecting desired speed.

  (5) Direct cutting of metric and inch threads.

  (6) The spindle can be rotated in jogging mode. Braking is quick.


Description

Unit

C6163B series

Capacity

Max swing over bed

mm

φ660

Max swing over slide

mm

φ400

Max. distance between centers

mm

1500/2000/3000/4000

Max. machining length

mm

1400/1900/2900/3900

Bed way width

mm

560

Spindle

Spindle thru-hole

mm

φ105

Spindle hole taper


1:20(metric taper)

Spindle nose


A1-11

Spindle speed

r/min

14 steps 12.5-1120

Feed and thread

Max travel of upper tool rest

mm

200

Max travel of lower tool rest

mm

480

Tool section

mm

32×32

Crosswise feed

mm/r

64 sorts 0.031-7.0

Longitudinal feed

mm/r

64 sorts 0.062-14.0

Metric thread

mm

38 sorts 0.5-56

Inch thread

t.p.i

43 sorts 56-0.5

Module thread

πmm

21 sorts 0.25-7

D.P. thread

DP

27 sorts 56-4

Tailstock

Quill dia.

mm

φ100

Max quill travel

mm

250

Taper hole (Morse)


Morse taper No.5

Motor

Main motor

kW

11

Coolant pump motor

kW

0.18

Others

Machine length

mm

3500/4000/5000/6000

Machine width

mm

1260

Machine height

mm

1385

Total weight

kg

4200/4500/5000/5800
