Introduction:

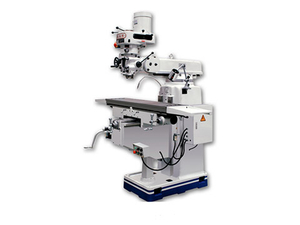

Universal turret milling machine
Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.
Our universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
Introduction:
Universal turret milling machine
Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.
Our universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.
Item/Model | X6330 | X6330A | ||
Table size | 305x1370 (12”x54”) | 305 x 1500 (12”x58”) | ||
Long travel | 870 | 1000 | ||
Cross travel | 360 | |||
Vertical travel | 360 | |||
T-slot No. and size | 3 x 16 | |||
Ram travel | 500 | |||
Distance from spindle nose to table surface | 0-350 | |||
Spindle hole taper | Standard: ISO40 | |||
Spindle travel | 127 | |||
Spindle Speed | Standard:shiftgrade 50HZ:66-4540; 60HZ:80-5440 | |||
Optional: variable 60-3600 | ||||
Auto.quill feed | Three steps : 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)mm/revolution | |||
Spindle moto | 3.75kW/5HP | |||
Head swivel | 90° | |||
Head tilting | 45° | FIX | ||
Dimension of package | One miller per case | 1566x1650x2080 | ||
Two miller per case | 1720x1800x2175 | |||
Three miller per case | ||||
G.W/set | 1430 | 1650 |
Item/Model | X6330 | X6330A | ||
Table size | 305x1370 (12”x54”) | 305 x 1500 (12”x58”) | ||
Long travel | 870 | 1000 | ||
Cross travel | 360 | |||
Vertical travel | 360 | |||
T-slot No. and size | 3 x 16 | |||
Ram travel | 500 | |||
Distance from spindle nose to table surface | 0-350 | |||
Spindle hole taper | Standard: ISO40 | |||
Spindle travel | 127 | |||
Spindle Speed | Standard:shiftgrade 50HZ:66-4540; 60HZ:80-5440 | |||
Optional: variable 60-3600 | ||||
Auto.quill feed | Three steps : 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)mm/revolution | |||
Spindle moto | 3.75kW/5HP | |||
Head swivel | 90° | |||
Head tilting | 45° | FIX | ||
Dimension of package | One miller per case | 1566x1650x2080 | ||
Two miller per case | 1720x1800x2175 | |||
Three miller per case | ||||
G.W/set | 1430 | 1650 |
