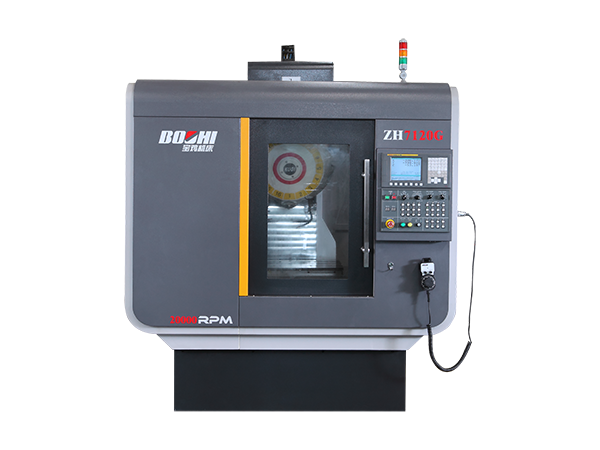

ZH7120G  Tapping Center

  • ZH7120G
  • BOCHI
  • ZH7120G
  • ZH7120G
Quantity:

Introduction:

  ZH7120G tapping center is suitable for production of case, plate, shell and chuck type work pieces in automotive, motorcycle, instrument, light and textile, electronics, and manufacturing industries. The lathe has features of high rigidity, high accuracy, high speed, high efficiency and high reliability. It is reliable, safe and easy to operate and can be used for small and medium quantity of production of multi work pieces. It can be fitted into automatic production line.


Item

Unit

Data

Table

Table area (W×L)

mm

650×400

T-slot


3×14×110

Max. permissible loss

kg

300

Stroke

X-axis right-and-left stroke

mm

550

Y-axis back-and-forth stroke

mm

400

Z-axis up-and-down stroke

mm

360

Capacity

Distance from spindle center to linear way top face

mm

480

Distance from spindle nose to table face

mm

105-465

Spindle

Spindle taper


BT30

Spindle motor power

kw

3.7/5.5(standard) 2.2/3.7(optional)

Spindle speed

r/min

80-10000(standard)

              80-20000(optional)

Feed

Max. feed speed (X/Y/Z)

mm/min

10000

Rapid traverse (X/Y/Z)

m/min

48/48/60

ATC

Magazine


16-station UFO-type magazine

Draw rod


BT30-45°

Tool change time (tool to tool)

s

2.5

Others

Power source

kVA/V

15/380

Air pressure

Mpa

0.6

Air source flow

L/min

250

Dimension (L×W×H)

mm

2000×2250×2500

Machine weight

kg

3000
