The Description of BC37 Series CNC Lathe Technology

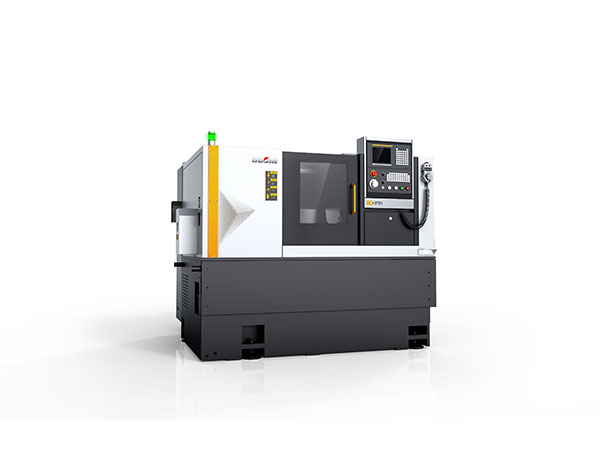

BC37 Series CNC lathe is a kind of middle and low-end economy and full-function CNC lathe which has the domestic advanced level of perfection. Comparing with the same specifications in domestic, it has a large range of machine tool processing, high weight and covers a small area , large knife dish on edge, high fast moving speed and very high cost performance.Strength, dynamic and static stiffness of machine, the main components of the mechanical structure, protection, cooling, etc. According to the design of turning center, it has high rigidity, high accuracy stable, high production efficiency, good operation agreeableness and aesthetically pleasing, prevent leakage effect is ideal full-function CNC machine tools, with GSK988TA numerical control system, realize the two axis control of the machine tool, cutting all kinds of inner and outer cylinder, cone surface, circular arc surface, all kinds of screw thread and drilling, expanding, hinge, rolling and boring processing, etc.
The Description of BC37 Series CNC Lathe Technology
BC37 Series CNC lathe is a kind of middle and low-end economy and full-function CNC lathe which has the domestic advanced level of perfection. Comparing with the same specifications in domestic, it has a large range of machine tool processing, high weight and covers a small area , large knife dish on edge, high fast moving speed and very high cost performance.Strength, dynamic and static stiffness of machine, the main components of the mechanical structure, protection, cooling, etc. According to the design of turning center, it has high rigidity, high accuracy stable, high production efficiency, good operation agreeableness and aesthetically pleasing, prevent leakage effect is ideal full-function CNC machine tools, with GSK988TA numerical control system, realize the two axis control of the machine tool, cutting all kinds of inner and outer cylinder, cone surface, circular arc surface, all kinds of screw thread and drilling, expanding, hinge, rolling and boring processing, etc.
Specifications
Item | unit | specification | |||
BC3731 | BC3751 | ||||
Processing range | Max swing diameter over bed | mm | Φ550 | ||
Max turning length | mm | 310 | 510 | ||
Max. turning diameter | mm | Φ370 | |||
Maximum turning diameter on the skateboard | mm | Φ330 | |||
Hydraulic clamping diameter | mm | 8〞 | |||
Spindle | mode of spindle head | GB5900.1 | A2-6 | ||
Main shaft taper hole specification | 1:20 | ||||
Thru-hole of spindle | mm | Φ66 | |||
Spindle bearing diameter (front/rear) | mm | Φ100/Φ90 | |||
Spindle speed | r/min | 50—4500 | |||
Main motor power (continuous /30 minutes) | kW | 11/15 | |||
Tailstock | Travel of Tailstock sleeve | mm | 150 | 350 | |
taper of center | MT No. | 4# | 5# | ||
Sliding base | angle of inclination | DEG | 30° | ||
displacement distance X/Z | mm | 210/350 | 210/550 | ||
Fast moving speed X/Z | m/min | 30 | |||
servo motor torque X/Z | Nm | 10/15 | |||
Ball screw diameter X/Z | mm | Φ32 | |||
Turret | stations of turret | 8/12 | |||
Tool size (turning/boring) | mm | 25×25/Φ40 | |||
other | power source | kVA | 23 | ||
Demension (length x width x height) | mm | 1866X2226X1661 (Containing the rear line of chips) | 2200X2226X1661 (Containing the rear line of chips) | ||
weight | kg | 4100 | 4400 |
