Introduction

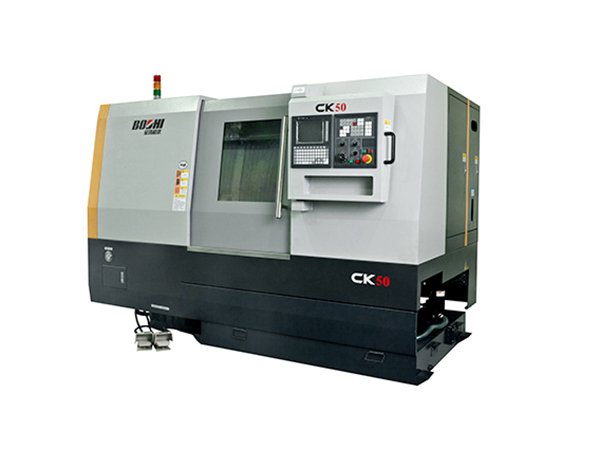

These series machines are high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.
Introduction
These series machines are high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.
Specifications
Item | Unit | CK50 | CK50S | CK50C | |
Capacity | Max. swing over bed | mm | Φ500 | Φ500 | Φ500 |
Max. swing over slide | mm | Φ320 | Φ320 | Φ240 | |
Max. turning length | mm | 500 | 500 | 500 | |
Max. turning dia. | mm | Φ370 | Φ370 | Φ370 | |
Max. bar dia. | mm | Φ51 | Φ51 | Φ51 | |
Spindle | Hydraulic chuck dia. | mm | Φ210 | Φ210 | Φ210 |
Spindle nose | A2-6 (GB/ T5900.1) | A2-6 (GB/T5900.1) | A2-6(GB/T5900.1) | ||
Spindle thru-hole | mm | Φ62 | Φ62 | Φ62 | |
Spindle speed | r/min | 60-2250 | 60-2250 | 40-4000 | |
Power of main motor | kW | 15 | 11 | 11 | |
Tailstock | Quill dia./travel | mm | Φ90/100 | Φ90/100 | Φ90/100 |
Quill taper hole | MT No. | 5 | 5 | 5 | |
Carriage | Slant angle | DEG | 45° | 45° | 45° |
Travel X/Z | mm | 210/550 | 210/550 | 210/550 | |
Rapid traverse X/Z | m/min | 12/16 | 12/16 | 24/24 | |
Turret | Number of station | 8/12 | 12/8 | 12/8 | |
Tool size (turning/boring) | mm | 25×25/Φ40 | 25×25/Φ40 | 25×25/Φ40 | |
Others | Power source | kVA | 35 | 35 | 35 |
Dimensions (L×W×H) | mm | 2850×1810×1850 | 2850×1810×1850 | 2850×1810×1850 | |
Gross weight | kg | 4500 | 4500 | 4500 |
