Introduction:

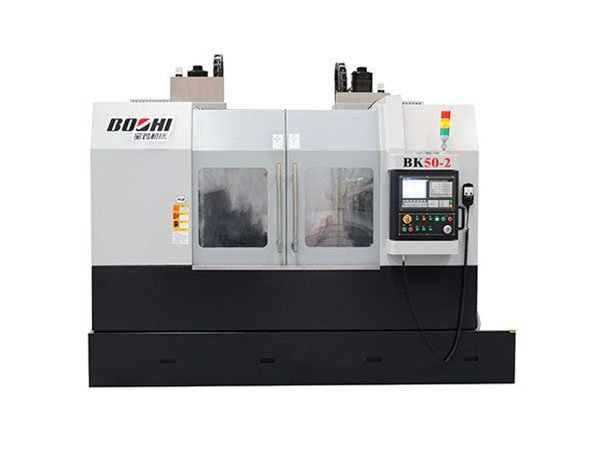

BK50-2 is a special purpose machine designed for flange producing sector. It is controlled by GSK 980TTC controller and features double spindles, double turrets and independent two channels for different wok machining. It is mainly used for roughing and semifinishing flanges of over 10 kg weight, motor flanges, motor cases and other flanges, discs, sleeves and short shafts which are difficult to set.
Features:
(1) Double spindles and double channels for different work machining, with large applicability.
(2) Large slope base for easy chip removal.
(3) High precision and ultra heavy duty linear guideways are used in X and Z axis.
(4) Beautiful appearance and full enclose guard for preventing chip splashing.
Introduction:
BK50-2 is a special purpose machine designed for flange producing sector. It is controlled by GSK 980TTC controller and features double spindles, double turrets and independent two channels for different wok machining. It is mainly used for roughing and semifinishing flanges of over 10 kg weight, motor flanges, motor cases and other flanges, discs, sleeves and short shafts which are difficult to set.
Features:
(1) Double spindles and double channels for different work machining, with large applicability.
(2) Large slope base for easy chip removal.
(3) High precision and ultra heavy duty linear guideways are used in X and Z axis.
(4) Beautiful appearance and full enclose guard for preventing chip splashing.
Item | Unit | Specification | |
Capacity | Max. swing | mm | Φ500 |
Max. turning dia. | mm | Φ420 | |
Max. swing over slide | mm | Φ500 | |
Max. turning height | mm | 360 | |
Spindle | Hyd. chuck dia. | mm | Solid 15″ |
Spindle nose | A2-8 | ||
Spindle speed | r/min | 50-800 | |
Power of spindle | kW | 11 | |
Max. spindle torque | Nm | 420 | |
Carriage | Travel (X/Z) | mm | 300/380 |
Rapid traverse (X/Z) | m/min | 12/12 | |
Servo motor torque (X/Z) | Nm | 15/22 | |
Servo motor power (X/Z) | kW | 2.3/3.5 | |
Turret | Number of stations | 4-station | |
Tool section | mm | 32×32 | |
Others | Power source | kVA | 45 |
Dimension(L×W×H) | mm | 4076×2064×2567 | |
Weight | kg | 10000 |
Item | Unit | Specification | |
Capacity | Max. swing | mm | Φ500 |
Max. turning dia. | mm | Φ420 | |
Max. swing over slide | mm | Φ500 | |
Max. turning height | mm | 360 | |
Spindle | Hyd. chuck dia. | mm | Solid 15″ |
Spindle nose | A2-8 | ||
Spindle speed | r/min | 50-800 | |
Power of spindle | kW | 11 | |
Max. spindle torque | Nm | 420 | |
Carriage | Travel (X/Z) | mm | 300/380 |
Rapid traverse (X/Z) | m/min | 12/12 | |
Servo motor torque (X/Z) | Nm | 15/22 | |
Servo motor power (X/Z) | kW | 2.3/3.5 | |
Turret | Number of stations | 4-station | |
Tool section | mm | 32×32 | |
Others | Power source | kVA | 45 |
Dimension(L×W×H) | mm | 4076×2064×2567 | |
Weight | kg | 10000 |
