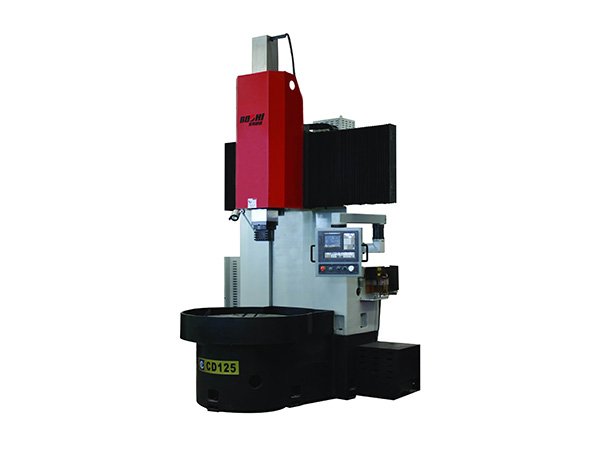

CD125 vertical CNC lathe

  • CD125
  • BOCHI
  • CD125
  • CD125

Introduction:

  (1)This efficient vertical lathe is designed for rough/finish machining of motor casings.

  (2)The base and column are made up of high grade cast iron with good vibration damping and stability.

  (3)Vertical structure, easy for workpiece to be set, small floor area.

  (4)Medium frequency hardened and precision ground, the sliding ways of X-axis crossbeam offer good dynamic response and lasting accuracy. The ways are coated with substance especially for guide ways, low friction, wearing resistance and quick response.

  (5)Square slide sleeper structure is used in Z-axis with high rigidity. It has the advantage of machining large and deep hole.

  (6) Centralized operation panel makes it an ease to operate the lathe.

  (7) All measuring units accord with international measuring system.

  (8) High accuracy ball screws and bearings are used in X/Z axes, with lasting accuracy.


Description

Unit

Specification

Capacity

Dia. of table

mm

1000

Max. swing dia.

mm

Φ1250

Max. turning dia.

mm

Φ1100

Max. work length

mm

900

Max. work weight

kg

4000

Table

Rotation speed of table

r/min

15~150

Max. torque of table

Nm

1500

Power of main motor

kW

15 (general motor)

Feed

Travel X

mm

650

Travel of slide sleeper Z

mm

900

Rapid traverse X/Z

mm/min

10/10

Servo motor torque X/Z

Nm

23/23

Servo motor power X/Z

kW

4.0/4.0

Ball screw diameter X/Z

mm

Φ50 /Φ50

Turret

Number of tools


2

Tool section

mm

32×32

Others

Power

kVA

25

Dimensions(L×W×H)

mm

2420×2081×3535

Gross weight

kg

10000
