Introduction:

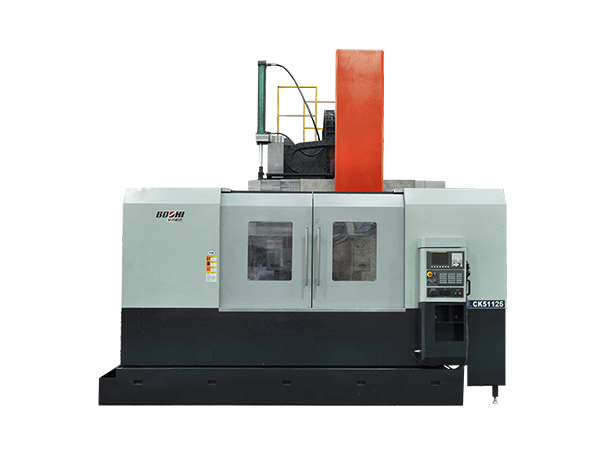

(1)High efficiency vertical CNC lathe for machining large and medium-sized chuck type workpieces
(2) High grade cast iron machine base and column with good stability and excellent shockproof performance.
(3) Moving column structure with wider range of workpieces to be machined and higher rigidity.
(4) Vertical structure with convenient workpieces loading/unloading and small floor area.
(5) Powerful AC spindle motor together with ZF two-step gear box outputs large torque and revolves at high speed, meeting different needs of machining.
(6) Equipped with high quality 4-station vertical electrical turret, rigid, rapid and reliable tool-changing.
(7) Boring mill jaws offer reliable and complete clamping.
(8) Independent coolant tank is easy to clean.
(9) Centralized machine operation panel ensures easy and quick operation.
(10) X/Z-axis screw uses high precision ball screws and special purpose bearings for lead screw with good accuracy maintaining.
(11) Integrated full-enclosed guard is environment-friendly and clear.
Introduction:
(1)High efficiency vertical CNC lathe for machining large and medium-sized chuck type workpieces
(2) High grade cast iron machine base and column with good stability and excellent shockproof performance.
(3) Moving column structure with wider range of workpieces to be machined and higher rigidity.
(4) Vertical structure with convenient workpieces loading/unloading and small floor area.
(5) Powerful AC spindle motor together with ZF two-step gear box outputs large torque and revolves at high speed, meeting different needs of machining.
(6) Equipped with high quality 4-station vertical electrical turret, rigid, rapid and reliable tool-changing.
(7) Boring mill jaws offer reliable and complete clamping.
(8) Independent coolant tank is easy to clean.
(9) Centralized machine operation panel ensures easy and quick operation.
(10) X/Z-axis screw uses high precision ball screws and special purpose bearings for lead screw with good accuracy maintaining.
(11) Integrated full-enclosed guard is environment-friendly and clear.
Description | Unit | Data | |
Capacity | Dia. of table | mm | Φ1000 |
Max. swing dia. | mm | Φ1500 | |
Max. turning dia. | mm | Φ1250 | |
Max. turning length | mm | 600 | |
Max. work weight | kg | 3500 | |
Table | Rotation speed of table | r/min | 2-400 |
Max. torque of table | N.M | 9500 | |
Power of main motor (cont./30min) | kW | 30/37 | |
Feed | Travel X | mm | 1300 |
Travel of slide sleeper (Z) | mm | 600 | |
Rapid traverse X/Z | mm/min | 10/10 | |
Torque of servo motor X/Z | Nm | 30/22 | |
Power of servo motor X/Z | kW | 7.0/4.0 | |
Dia. of ball screw X/Z | mm | Φ63 /Φ50 | |
Turret | Number of stations | 12 | |
Tools size (turning/boring) | mm | 32X32(25X25,Φ50) | |
Others | Power source | kVA | 75 |
Dimension (L×W×H) | mm | 4950X3020X4200 | |
Total weight | kg | 18500 |
Description | Unit | Data | |
Capacity | Dia. of table | mm | Φ1000 |
Max. swing dia. | mm | Φ1500 | |
Max. turning dia. | mm | Φ1250 | |
Max. turning length | mm | 600 | |
Max. work weight | kg | 3500 | |
Table | Rotation speed of table | r/min | 2-400 |
Max. torque of table | N.M | 9500 | |
Power of main motor (cont./30min) | kW | 30/37 | |
Feed | Travel X | mm | 1300 |
Travel of slide sleeper (Z) | mm | 600 | |
Rapid traverse X/Z | mm/min | 10/10 | |
Torque of servo motor X/Z | Nm | 30/22 | |
Power of servo motor X/Z | kW | 7.0/4.0 | |
Dia. of ball screw X/Z | mm | Φ63 /Φ50 | |
Turret | Number of stations | 12 | |
Tools size (turning/boring) | mm | 32X32(25X25,Φ50) | |
Others | Power source | kVA | 75 |
Dimension (L×W×H) | mm | 4950X3020X4200 | |
Total weight | kg | 18500 |
