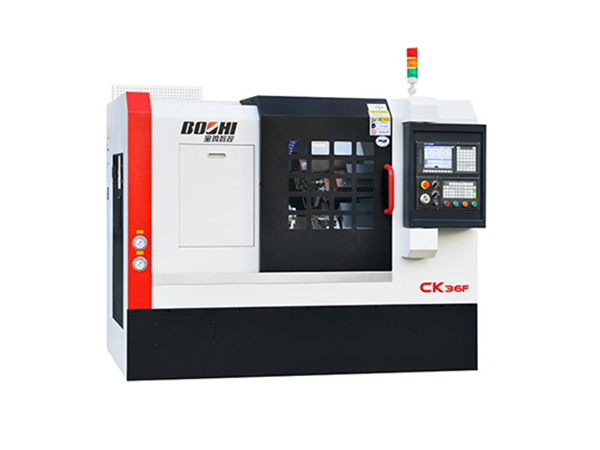

CK36F CNC Lathe

  • CK36F
  • BOCHI
Quantity:

■ Features


Integrated base and 45° slant bed has undergone a strict aging treatment, so fluent chip disposal and friendly cutting space is ensured.



The single cartridge type spindle is supported by imported angular contact ball bearings. It has been balanced dynamically and rotates smoothly at high speed.



Span distance of z-axis precision linear guideways is 440mm with a precision ball screw located between. So total rigidity of machine is enhanced and accuracy is lasting.



The widened T-shaped cross slide can easily hold comb tool block, horizontal turret or revolving tool holder.



The separate rear/side mounted coolant tank ensures fluent chip disposal and easy chip removal.



The mechanical drilling/milling unit performs drilling and milling easily, composite milling-turning can also be performed.


item

Unit

CK36F

Capacity

Max. swing over   bed

mm

φ400

Max. swing over   slide

mm

φ140

Max. turning dia.

mm

φ360

Max.

Max.   drilling/milling bar dia.

mm

Φ50

Max. turning   length

mm

200

Max. bar dia. to   be held

mm

φ45

Spindle

Mode of spindle head


A2-5

Size of spindle nose

mm

Φ82.563

Spindle taper


MS φ63  1:20

Diameter of spindle bore

mm

φ56

Speed of main spindle

rpm

60-4000

Diameter of chuck

inch

6


X/Z axes trip

mm

380/350

X/Z axes screw   diameter×pitch

mm

φ32X8/φ32X10

Y axes screw diameter×pitch

mm

Φ20×5

X/Z axes cutting feed rate

m/min

20/20

Blade adapter

Head type


Horizontal   hydraulic knife tower with eight stations

Knife party sizeturning/boring

mm

20×20/φ25

Power tool

Power tool form


Servo   ER20

Tool capacity


Z   to 1

Max.   RPM



rpm

4000

Max. install the drill bit dia.

mm

φ13

·           Max. drilling dia.

mm

φ8

Max. tapping dia.

mm

M6

Max. milling cutter dia.

mm

φ10

Electric   machine



Motor power of main drive

kw

5.5/7.5servo

X/Z axes motor power of   drive

kw

1.88/2.5

X/Z axes motor torque

nm

6/10

Z1

kw

1

Z1 axes motor torque

nm

3.2

Coolant motor power

w

150

Else

CNC control system


GSK988TAservo

CNC controlled axes


six axes

Spindle positioning brake device


hydraulic pressure

·           Power capacity

kva

20

Machine body layout type


45 ° inclined   bed as a whole

Machine weight

kg

2200

Machine overall dimension (length × width ×   height)

mm

2150×1650×1710
