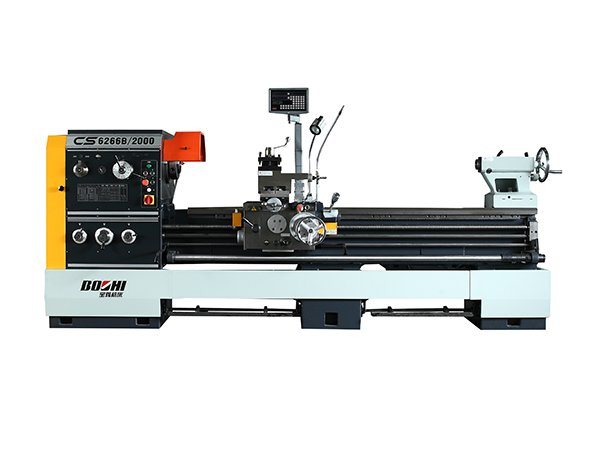

CS61/6266B Gap-bed Lathe

Introduction:

　　—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

　　—Threading Inch, Metric, Module and D.P.;

　　—Perform drilling, boring and groove broaching;

　　—Machine all kinds of flat stocks and those in irregular shapes;

　　—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

　　—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;

　　—There are hand brake and foot brake for users to choose;

　　—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

Item		Unit	Parameter
			CS6166B	CS6266B
Capacity	Max swing over bed	mm	Φ660
	Max swing in gap	mm	Without gap	Φ870
	Effective length in gap	mm	Without gap	240
	Max swing over slide	mm	Φ420
	Max workpiece length	mm	1000/1500/2000/3000
	Machine bed width	mm	390
Spindle	Spindle thru-hole	mm	Φ82
	Spindle nose		ISO 702/Ⅱ No.8 cam-lock type
	Spindle speed	r/min	24 step 9-1600
	Spindle motor	kW	7.5
Tailstock	Quill dia./travel	mm	φ75/150
	Taper of center	MT	5
Tool post	Number of station/Tool section		4/25X25
Feed	Max. Travel of upper toolpost	mm	145
	Max. Travel of lower toolpost	m/min	320
	X-axis feed	mm/r	93 sorts 0.012-2.73
	Z-axis feed Z-axis feed	mm/r	93 sorts 0.028-6.43
	Metric thread	mm	48 sorts 0.5-224
	Inch thread	t.p.i	48 sorts 72-1/8
	Module thread	πmm	42 sorts 0.5-112
	DP thread	DP	42 sorts 56-1/4
Others	Coolant pump motor	kW	0.06
	Machine length	mm	2632/3132/3632/4632
	Machine width	mm	1050
	Machine height	mm	1350
	Machine weight	kg	2400/2600/2800/3000

Item		Unit	Parameter
			CS6166B	CS6266B
Capacity	Max swing over bed	mm	Φ660
	Max swing in gap	mm	Without gap	Φ870
	Effective length in gap	mm	Without gap	240
	Max swing over slide	mm	Φ420
	Max workpiece length	mm	1000/1500/2000/3000
	Machine bed width	mm	390
Spindle	Spindle thru-hole	mm	Φ82
	Spindle nose		ISO 702/Ⅱ No.8 cam-lock type
	Spindle speed	r/min	24 step 9-1600
	Spindle motor	kW	7.5
Tailstock	Quill dia./travel	mm	φ75/150
	Taper of center	MT	5
Tool post	Number of station/Tool section		4/25X25
Feed	Max. Travel of upper toolpost	mm	145
	Max. Travel of lower toolpost	m/min	320
	X-axis feed	mm/r	93 sorts 0.012-2.73
	Z-axis feed Z-axis feed	mm/r	93 sorts 0.028-6.43
	Metric thread	mm	48 sorts 0.5-224
	Inch thread	t.p.i	48 sorts 72-1/8
	Module thread	πmm	42 sorts 0.5-112
	DP thread	DP	42 sorts 56-1/4
Others	Coolant pump motor	kW	0.06
	Machine length	mm	2632/3132/3632/4632
	Machine width	mm	1050
	Machine height	mm	1350
	Machine weight	kg	2400/2600/2800/3000
