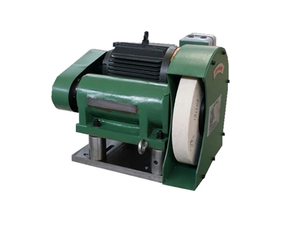

FY500/FY600 Series Grinding Head

  • FY500/FY600
  • BOCHI
Quantity:

Features:

Structure is simple and novel, convenient installation, Spindle bearings are sliding bearing structure, it can provide the base according to lathe model. Suitable for C61100 ; C61125 etc.


Specification:



PARAMETER TYPE


FY500/FY600

Radicai runout of   spindle conemm

≤0.005

Axial runout of   spindlemm

≤0.005

Spindle speed (rpm)

1337(FY500)1114(FY600)

Wheel linear   velocity(m/s)

35

Spindle diameter(mm)

Φ80

Motor power(kw)

7.5

Wheel size(mm)

Φ500(600)×Φ203(305)×63

Distance from spindle   center to bottom surface of machine

180

Distance from spindle   center to front side of machine

110

Weight(kg)(No base)

400

Overall weight( Length   ×Wide×Height mm)

700×600×700

Standard accessories: Wheel; Wheel balance shaft; Dismantle wheel tool.
