Mandrel press with lever

  • DP500, DP1000, DP1500, DP2000, DP3000

  • Ageo

  • DP500, DP1000, DP1500, DP2000, DP3000

  • DP500, DP1000, DP1500, DP2000, DP3000

Availability:
Inquire

Introduction:　　

The Ageo PRESS mandrel Presses with lever are robust and inexpensive presses for a variety of applications. The high precision manufacturing guarantees safety, reliability and durability. Mandrel presses with lever are ideal for grouting of turn handles, bushings, bearings, bolts and pins.





DP500

DP1000

DP1000V

DP1500

DP2000

 DP3000

Pressing power (kN)

5

10

10

15

20

30

Lever transmission (i)

1:14

1:27

1:27

1:27

1:27

1:38

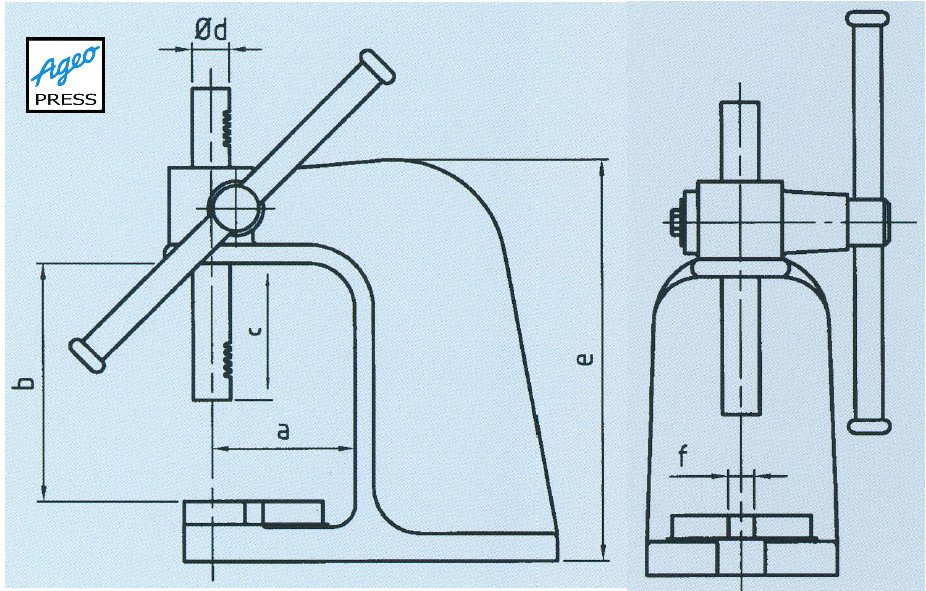

Depth of throat till the centre of ram (mm)

a

95

155

155

220

250

250

Max.Height Of Installation (mm)

b

150

260

480

350

420

500

Stroke of ram (mm)

c

150

260

500

350

420

500

Diameter of ram (mm)

d

32

40

40

58

58

78

Height of pressing body (mm)

e

290

440

665

570

700

780

Slot width of the mounting plate(mm)

f

15-35

20-46

20-46

20-46

35-80

35-80

Net weight(kg)

16

45

56

90

143

175

Net weight with base frame(kg)

-

78

89

120

171

203
